Visit Passes

A visit pass is the credential a visitor presents at the checkpoint - a QR code or PIN bound to a validity window and access rights. Passes are issued when an invite is generated or a registration is approved, so the visitor must already have a generated invite or an approved registration before a pass appears here.

Step 1: Find the visitor in the Visitors list

Select Visitors in the sidebar to open the Visitors History list. Type part of the visitor’s name into the column filter under the Last Name header, then click the visitor’s row to open their profile.

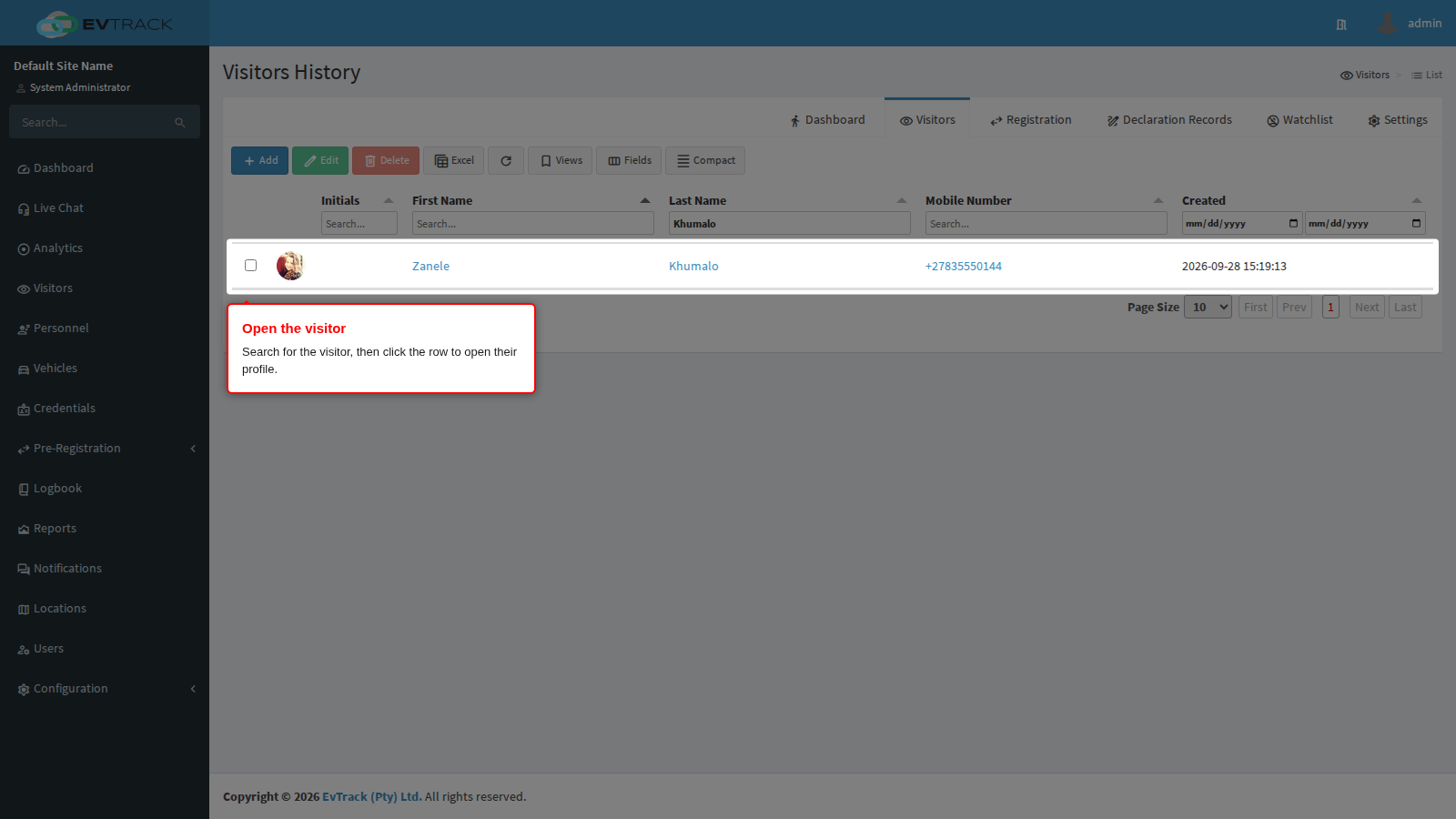

Visitor row in the Visitors list

Step 2: Select the Visit Pass tab

The visitor’s profile opens on the Overview tab. Select the Visit Pass tab.

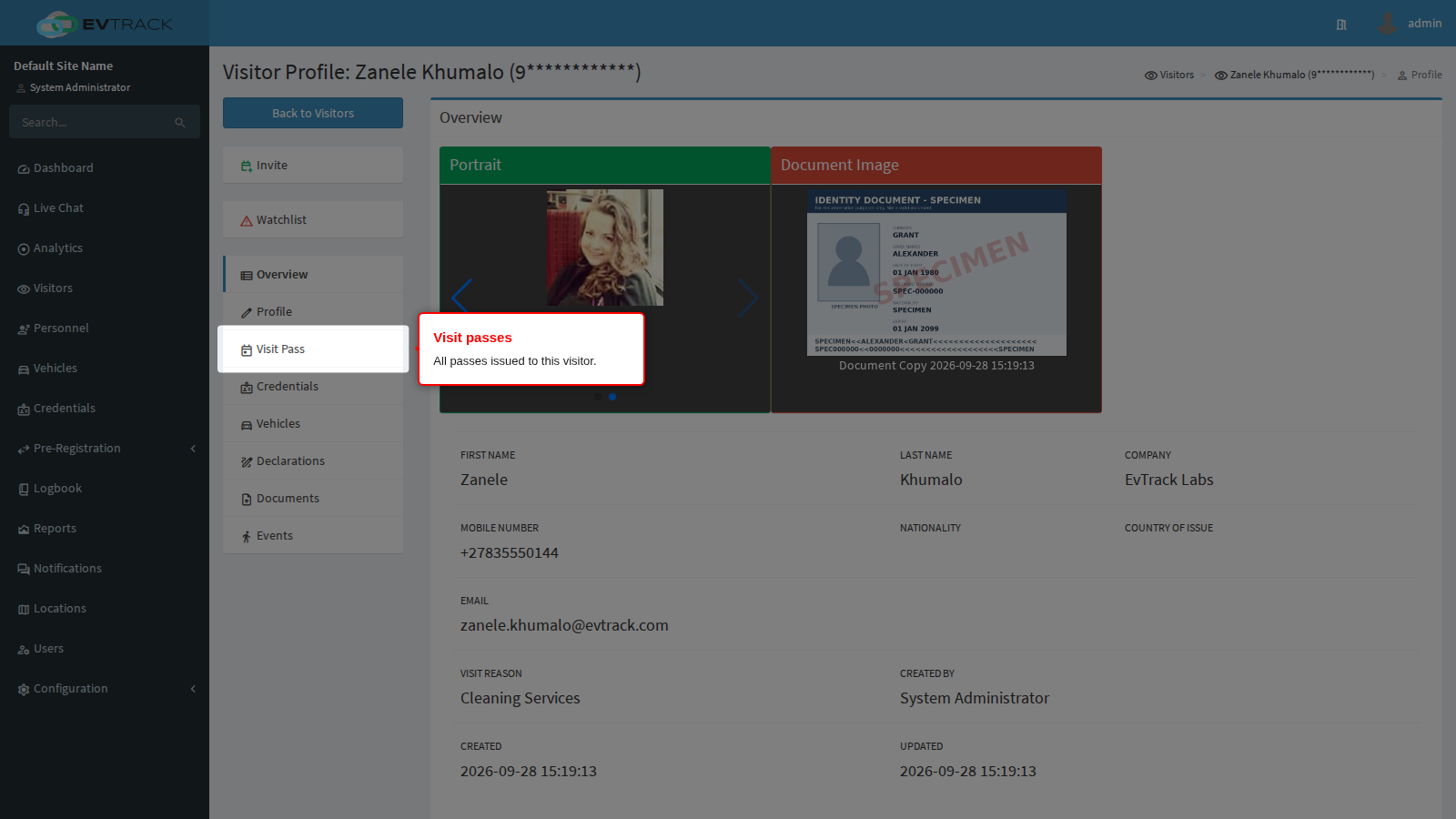

Visit Pass tab on the visitor profile

Step 3: Review the issued passes

Every pass issued to the visitor is listed with its validity window and status. From here passes can be viewed, edited or resent.

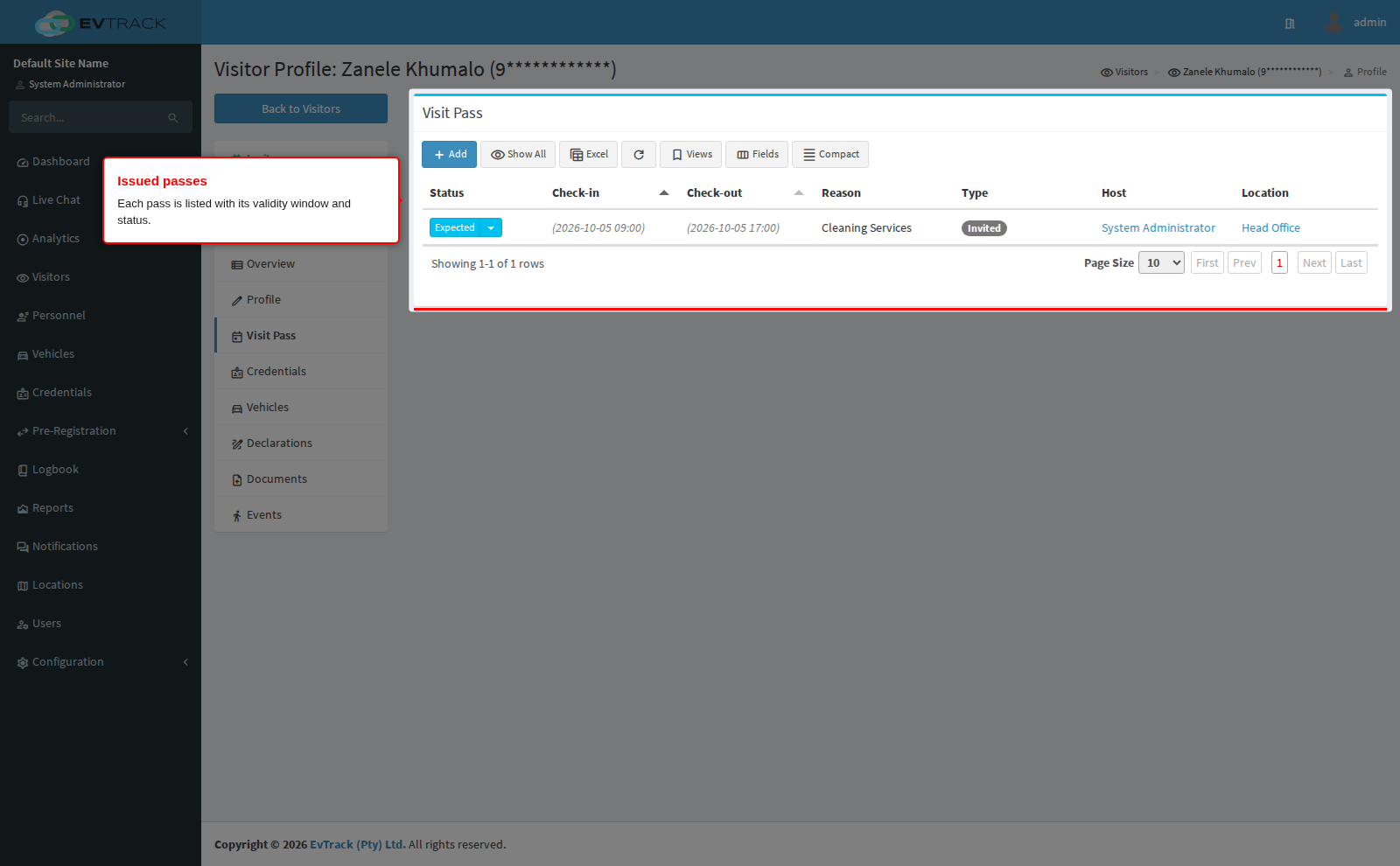

Issued passes on the Visit Pass tab

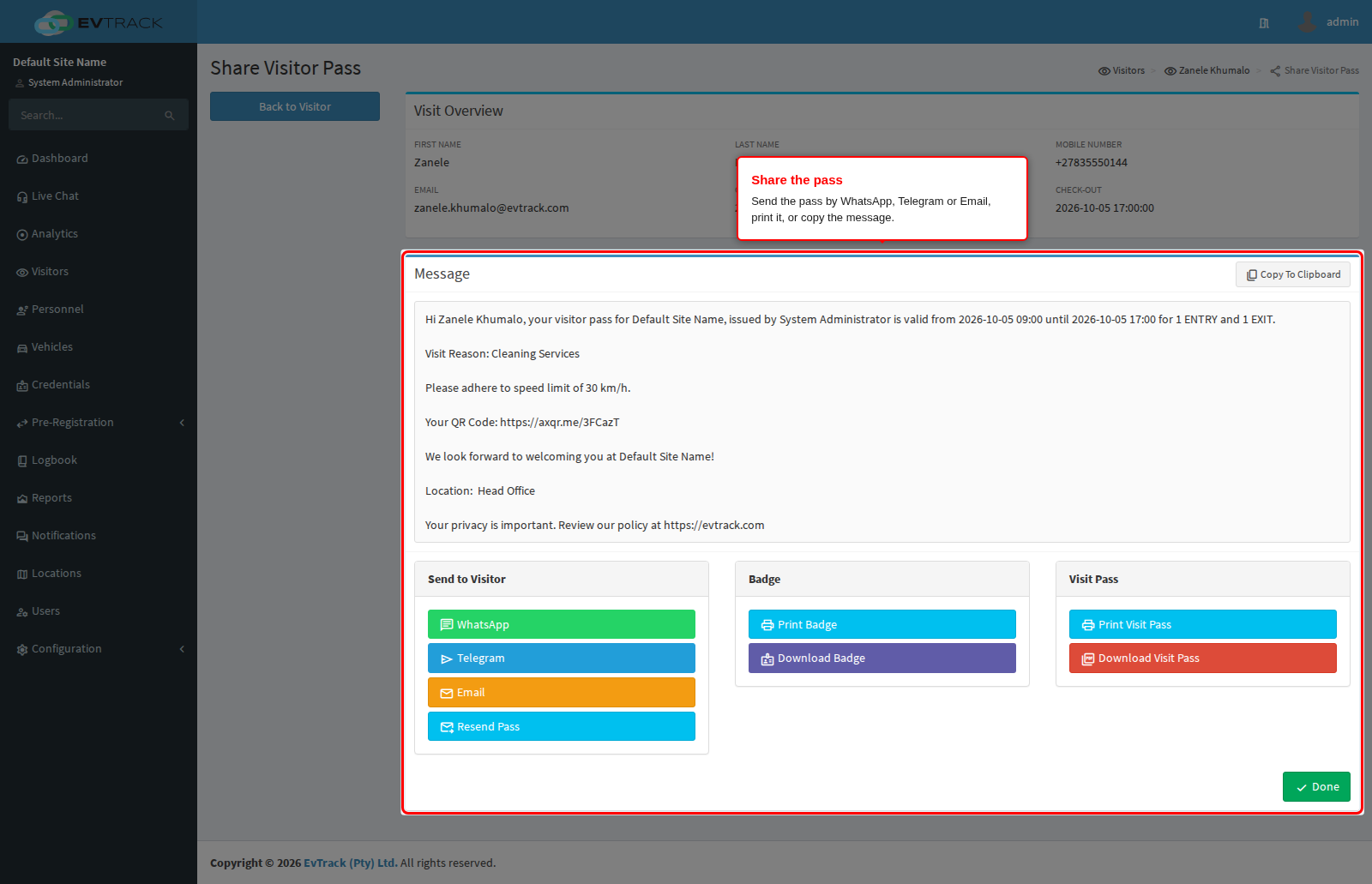

After generating an invite, the Share Visitor Pass page shows the visit overview and the pass message as a read-only preview, with Copy To Clipboard in the message header, a Send group (WhatsApp, Telegram, Email, Resend Pass) and a Documents group (Print Badge, Download Badge, Download Visit Pass). Buttons your role does not allow are not shown.

The printable pass

The pass can be downloaded or printed as a PDF badge - the capture below shows the rendered PDF exactly as it prints, carrying the visitor’s details, photo, the validity window and the scannable code.

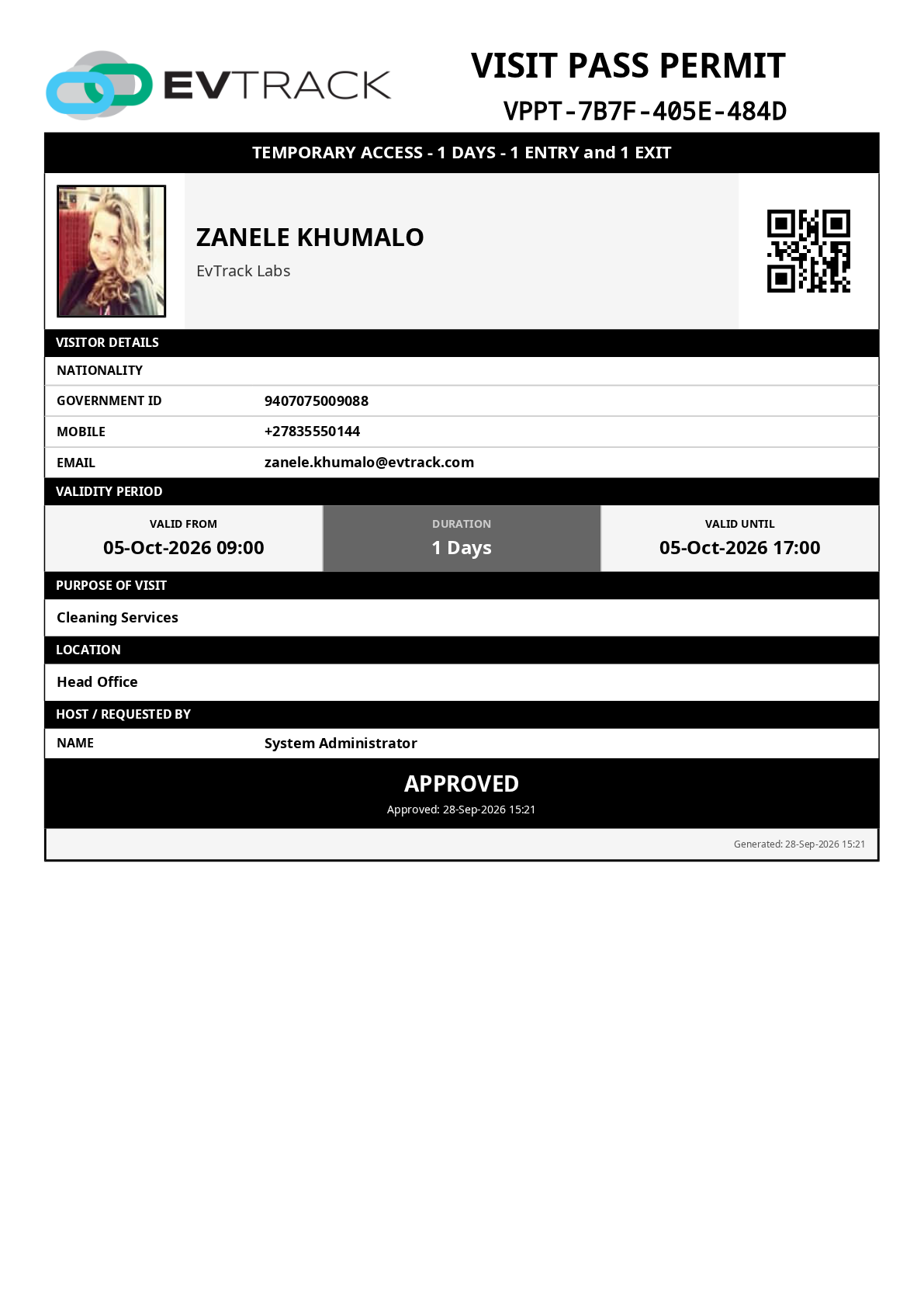

Printable visit pass

Visitor badge templates

Besides the pass, a printable visitor badge can be produced from the share page (Print Badge / Download badge) and from the visitor list row actions. The layout is controlled by the Visitor Template setting under Configuration > System Settings > Badge Printing - see Badge Printing to change it, and Custom SVG Badge Templates to design your own. One generated example per built-in layout:

Banner Style - a banner layout without a QR code.

QR Code Only - a minimal badge carrying just the visitor’s QR code.

Banner with QR Code - the banner layout plus the visitor’s access QR code.

Portrait with QR Code - a vertical layout with the QR code.

Portrait Banner with QR Code - a vertical banner layout with the QR code.

Notes

The pass message the visitor receives states the validity window (for example “valid from 2026-08-01 to 2026-08-02”) - the pass only grants access within that window. If a visitor is unsure of the site’s address, they should verify the details with their host. For security reasons, codes to enter or exit the site are only ever issued through the host - never by EvTrack support.
